H.Y.B.R.I.D. - heating the future

H.Y.B.R.I.D. uses the residual heat from hall heating systems. Up to 15 % of extra energy can be recovered in this way. For example, for the hot water-based heating of adjacent office buildings. Or for hot service water. At virtually no additional cost. The efficiency of the overall system increases to a combustion efficiency of up to 108 %.

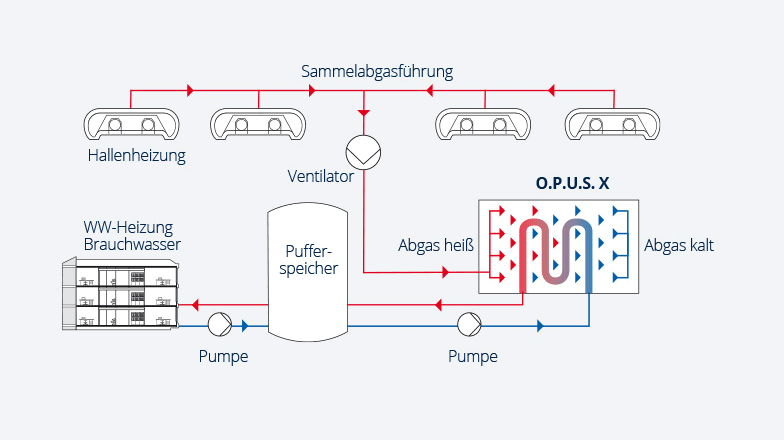

The H.Y.B.R.I.D. system from KÜBLER is not only economically interesting for new installations. Designed as a module, the O.P.U.S. X heat exchanger can be integrated into existing infrared heating systems as required.

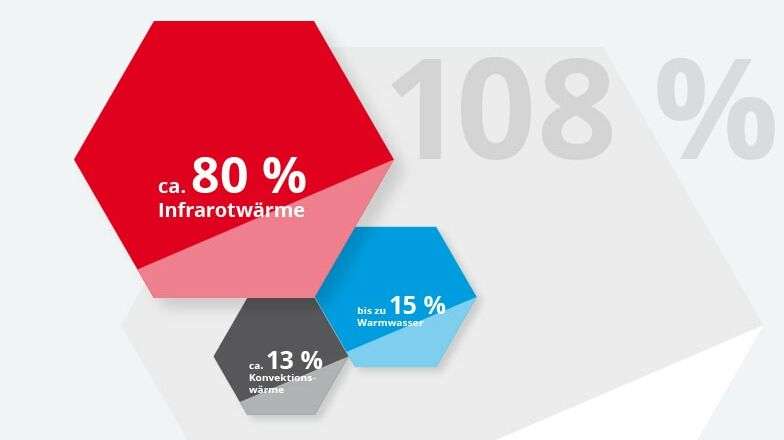

The answer: KÜBLER's highly efficient H.Y.B.R.I.D. system. With our MAXIMA high-end infrared appliances, up to 80 % of the energy used from the fuel (based on the calorific value, Hi) is transferred directly to the working area as infrared heat. From the energy remaining in the flue gas, up to a further 15 % of energy is made available for office heating, domestic hot water, hot air for other zones and many other applications by means of a flue gas/water heat exchanger system. Thanks to the condensing technology, this also contains large amounts of hidden energy (latent energy), which is bound in the flue gas in the form of water vapor. This intelligent overall system, together with the direct waste heat of the overall system (approx. 13 % convection heat), makes it possible to keep up to 108 % (80 % IR + 15 % hot water + 13 % convection heat) of the fuel energy introduced in the building envelope. 95 % of the energy (80 % IR + 15 % hot water) is conducted directly to where it is actually needed. Into the working area.

By the wayThanks to our intelligent CELESTRA control and regulation system, energy savings of 20 % are already possible "a priori" without any gas particles passing through the pipe.
